Description

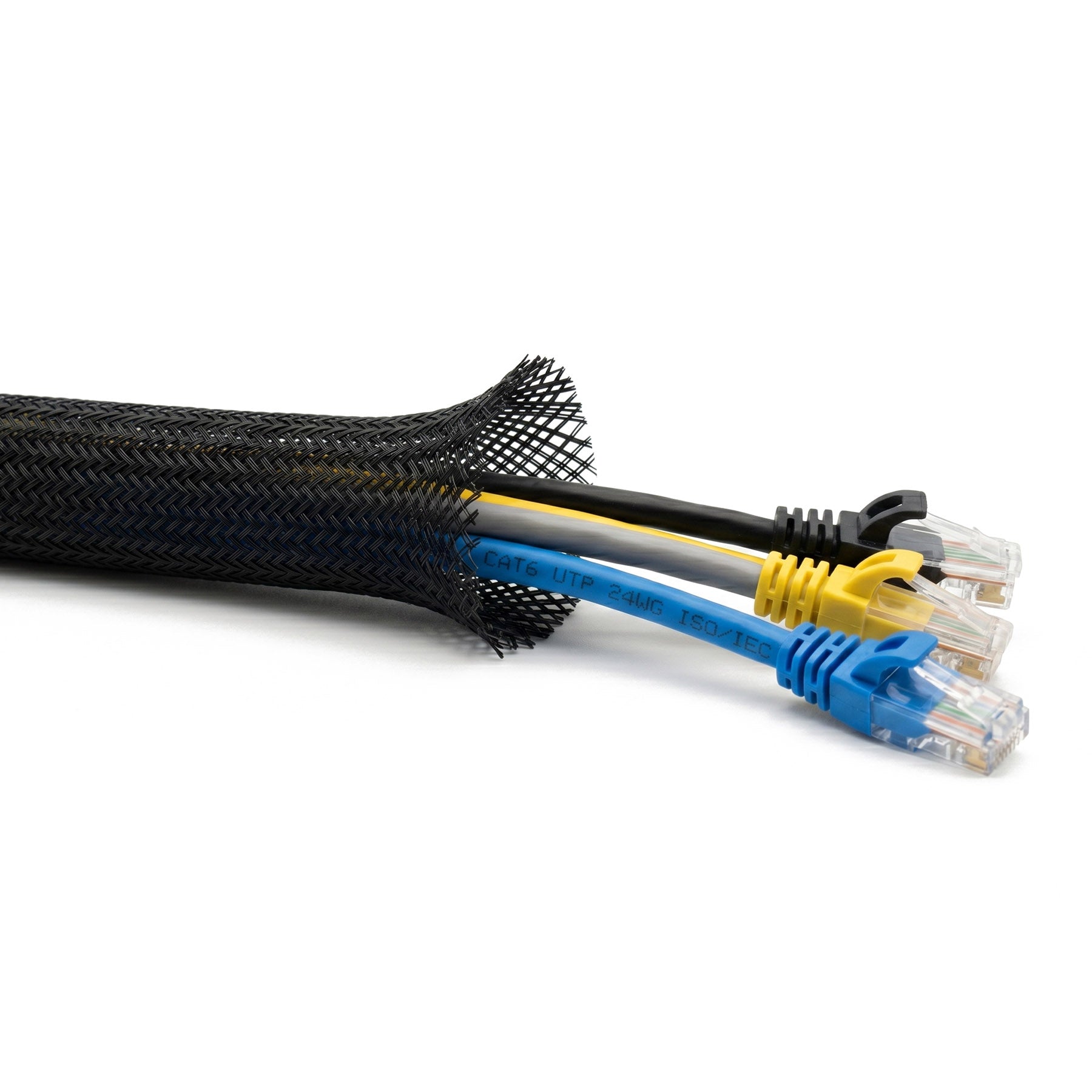

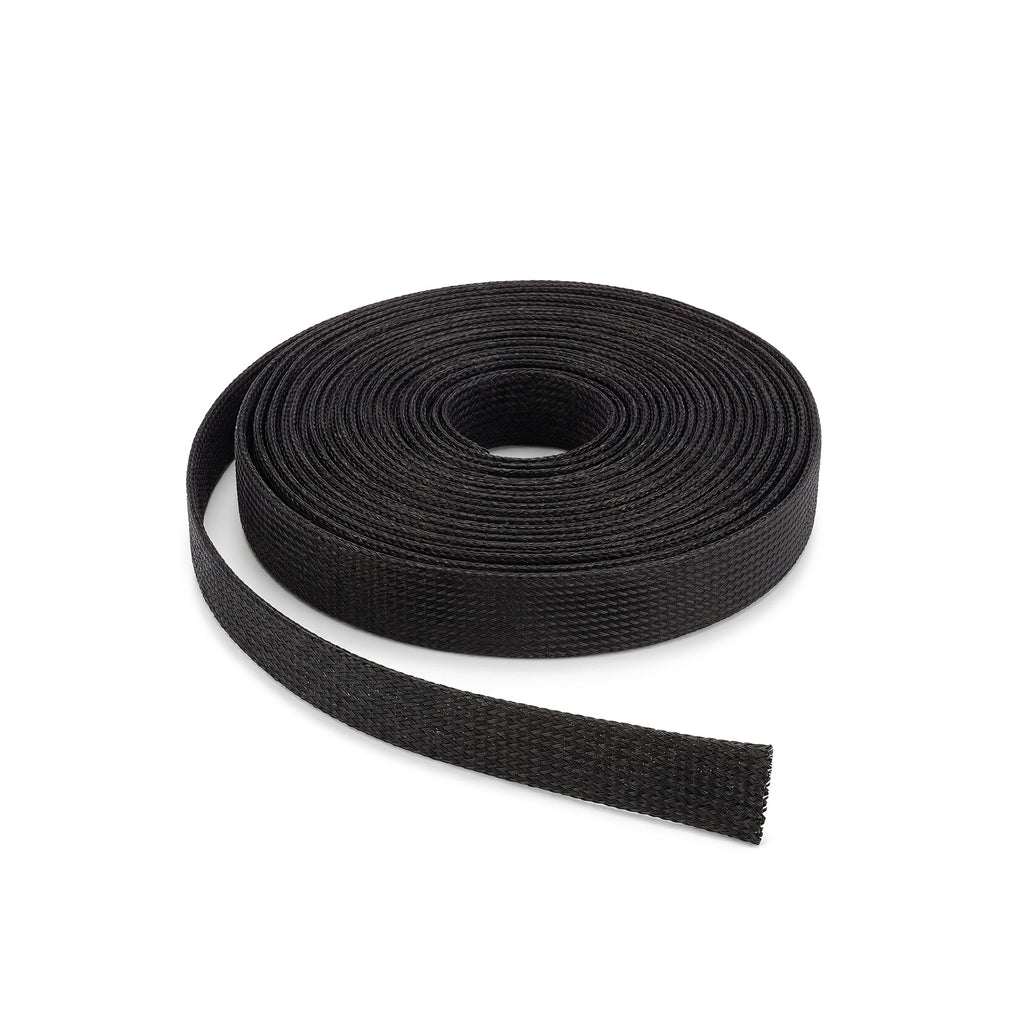

High quality expandable braided sleeving for robust and durable protection of wire and cable. Ideal for application in wire harnesses, machinery, railway and general manufacturing industries / Material: Polyester / Nominal Size: 6mm-50mm / Expandable Range: 3mm-9mm to 40mm-80mm / Working Temperature: -50°C to +150°C / Colour: Black / Reel Length: 25m-100m / UL Approved / Flammability: VW-1
| Size | Expandable Range |
|---|---|
| 6mm | 3mm - 9mm |
| 8mm | 5mm - 16mm |
| 12mm | 8mm - 24mm |
| 14mm | 9mm - 26mm |
| 16mm | 10mm - 27mm |
| 20mm | 14mm - 30mm |
| 25mm | 18mm - 35mm |
| 32mm | 20mm - 50mm |
| 38mm | 30mm - 60mm |
| 50mm | 40mm - 80mm |
