Description

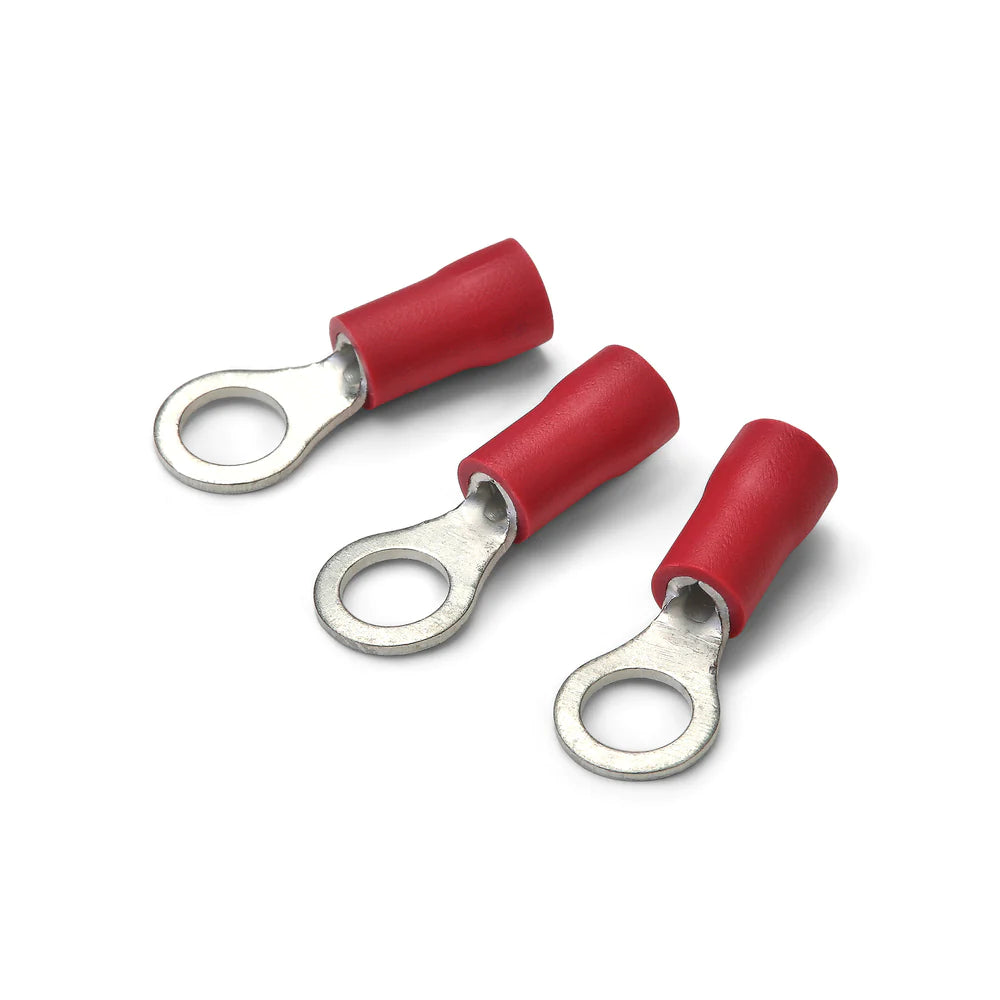

High quality insulated red crimp ring terminals with electro-tin plating for excellent conductivity. Ideal for a wide range of applications including electrical manufacturing and automotive wire harnesses. / Type: PVC Insulated Ring Terminal / Insulation Colour: Red / Wire Size: 0.5mm² - 1.5mm² / Stud Size: 3.2mm - 13mm / Terminal Material: Copper With Electro Tin Plating (PVC) / Pack Size: 100pcs / Maximum Operating Temperature: 75°C / Maximum Electrical Rating: 600V Max / RoHS Compliant / Halogen Free / REACH Compliant
| Size | Wire Size | Stud Size |
|---|---|---|
| 3mm | 0.5mm² - 1.5mm² | 3.2mm |
| 3.5mm | 0.5mm² - 1.5mm² | 3.7mm |
| 4mm | 0.5mm² - 1.5mm² | 4.3mm |
| 5mm | 0.5mm² - 1.5mm² | 5.3mm |
| 6mm | 0.5mm² - 1.5mm² | 6.5mm |
| 8mm | 0.5mm² - 1.5mm² | 8.4mm |
| 10mm | 0.5mm² - 1.5mm² | 10.5m |
| 12mm | 0.5mm² - 1.5mm² | 13mm |
